ROSE
Product center

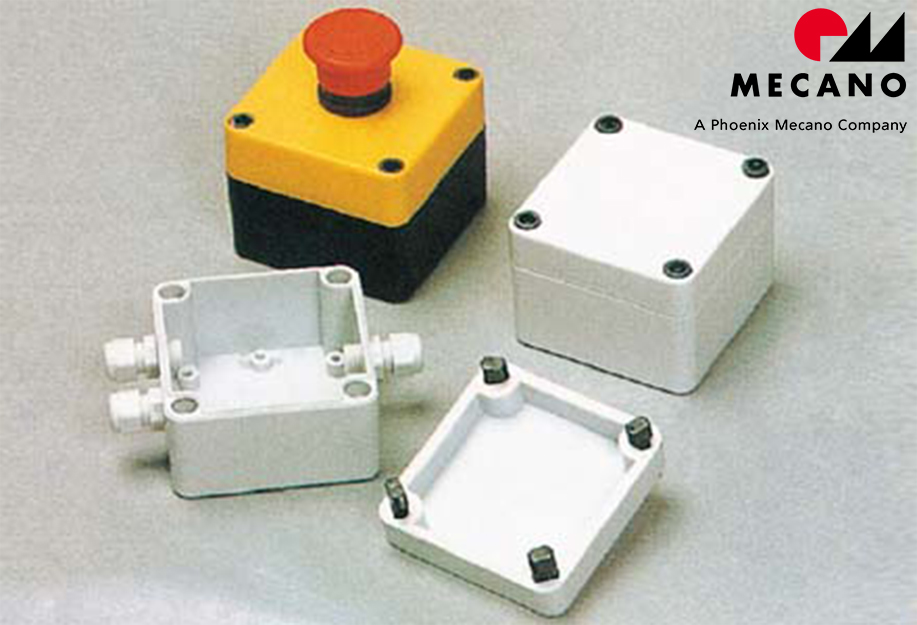

ABS enclosure/ABS control station
- Material: ABS, the lid and the base are screwed by high-strength nylon screws.
- Sealing: Mortise and tenon joint structure with Polyurethane seals
- Internal mounting: fixing threaded holes at the bottom (for self-tapping screws).
- Equipment: can be equipped with guide rails, terminals and cable glands (please order separately)
- External mounting: External mounting holes are located outside the sealing area
- Machining: various machining available
Product Information
| Technical Data | |
| Material | ABS |
| Ingress protection | IP 66 EN 60529 |
| Surface resistance | 4 x 1014 Ohm |
| Flammability | UL 94/HB |
| Impact resistance | 24KV/mm |
| Temperature range | -40°C to +80°C |
| Colour | ABS Enclosure;RAL 7035 |
| ABS control station: black base with white lid or black base with yellow lid |

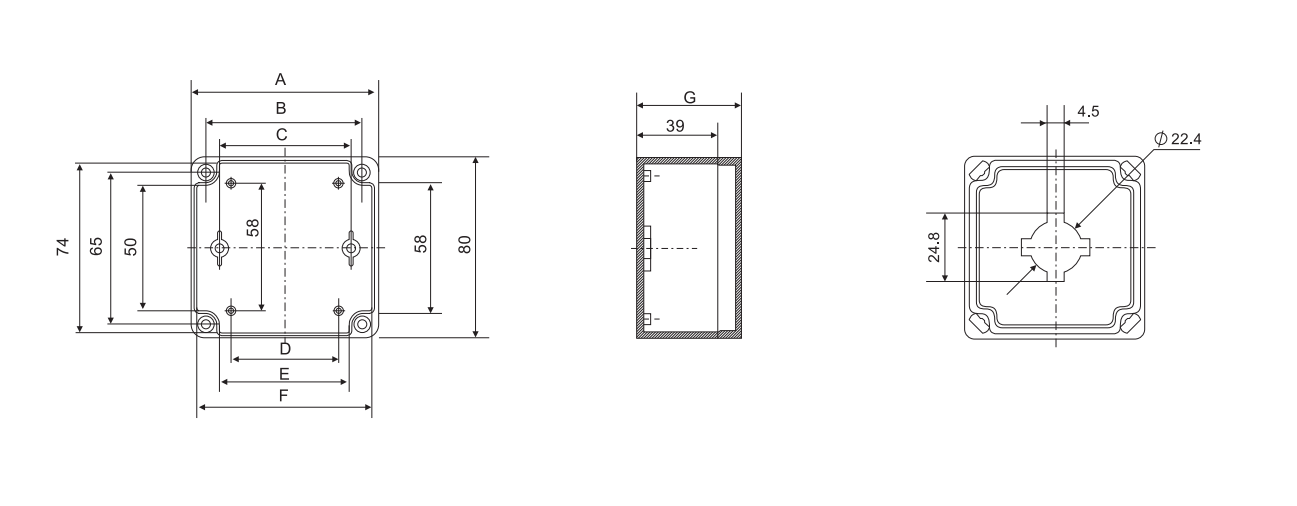

| Product Range | ||||||||
|
Name |
Order-No. | A | B | C | D | E | F | G |
| ABS Enclosure | 09-08080611 | 82 | 80 | 58 | 43.4 | 52 | 76 | 57 |
| ABS Control Station | 09-08080921 | 82 | 80 | 58 | 43.4 | 52 | 76 | 65 |
For More Product Details
Please Scan The QR Code
Please Scan The QR Code
