ROSE
Product center

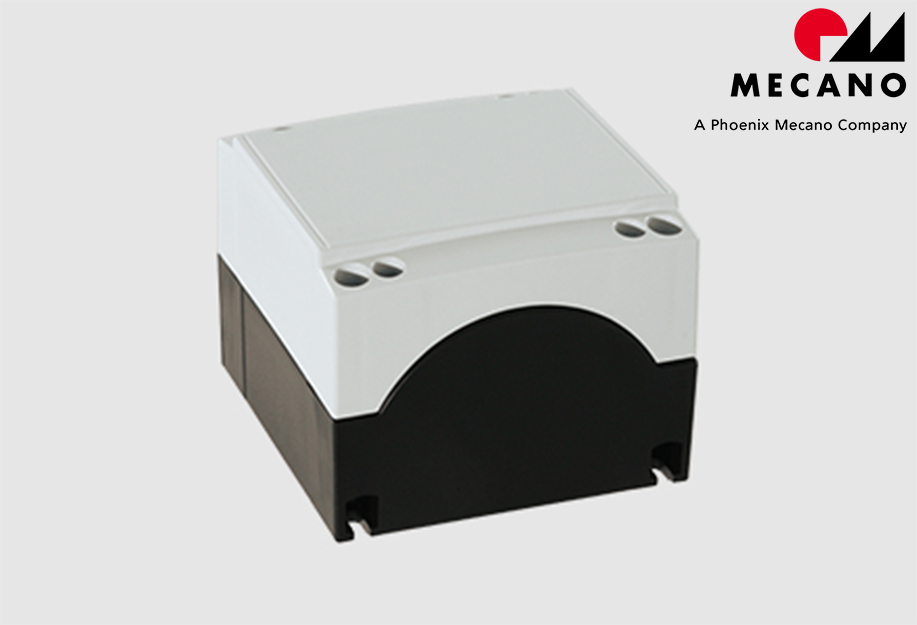

Polyamide enclosures
- Break proof polyamide enclosure for individual fitting of 22,5 mm control switches (lid mounting or base mounting) and pilote lamps
- Execution with 22.5 mm lid holes or without lid holes
- Gland holes M20 / M25 on two sides
Included in delivery
-
Enclosure consisting of lid and base with screws base with M20 and M25 hole for cable entry; mounting possibility of TS 35/7,5, DIN rails and adaption plates of serveral manufacturer
Product Information
| Technical Data | |
| Material | Polyamide 6 |
| Colour | Base: RAL 9005, jet black, Top: RAL 7035, light grey |
| Ingress protection | IP 65 to EN 60529 |
| Impact resistance | 7 Joule in reference to EN 60079-0 |
| Flammability | UL 94 V-2 |
| Surface resistance |
>1012 Ohm to IEC 60093 |
| Temperature range | -20°C to +60°C |
| Product Range | ||||
| Order-No. | Dimensions H x W x D (mm) | Type | ||
| 31.10 01 00 | 110 x 110 x 85 | CS Box 110-0 | ||
| 31.10 01 01 | 110 x 110 x 85 | CS Box 110-1 | ||
| 31.10 02 00 | 110 X 160 X 85 | CS Box 160-0 | ||
| 31.10 02 02 | 110 X 160 X 85 | CS Box 160-2 | ||
| 31.10 02 03 | 110 X 160 X 85 | CS Box 160-3 | ||
| 31.10 03 00 | 110 X 230 X 85 | CS Box 230-0 | ||
| 31.10 03 04 | 110 X 230 X 85 | CS Box 230-4 | ||
| 31.10 03 05 | 110 X 230 X 85 | CS Box 230-5 | ||
