ROSE
Product center

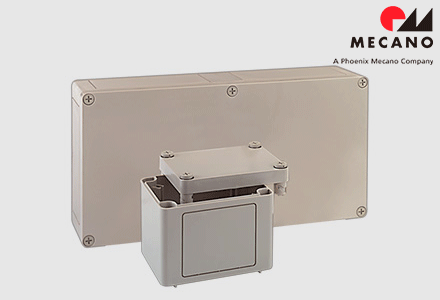

Polycarbonate flange
- Light plastic enclosure for industrial applications with flange pre- embossing
- Combination options with other polycarbonate flange enclosures
- Snap lock technology and flange quick-fixing-system
Included in delivery
- Complete closed enclosure body with flange break-out points, lid with plastic quick release fastener; 4 threaded inserts for internal fixing
Product Information
| Technical Data | |
| Material | Polycarbonate |
| Colour | Enclosure: RAL 7032, pebble grey |
| Ingress protection | IP 54 to EN 60529 |
| Impact resistance |
7 Joule in reference to EN 60079-0 (flange pre-embossing excepted) |
| Disruptive strength | enclosure: >18 KV/mm, IEC 60243-1 |
| Insulation | fully insulated VDE 0100 |
| Flammability | Enclosure: self extinguishing, UL 94 V-0 |
| Surface resistance | >1015 Ohm, IEC 60093 |
| Toxicity | low-halogen |
| Seals | CR round seal |
| Temperature range | -40°C to +100°C (incl. seals) |
| Product Range | ||||
| Order-No. | Dimensions H x W x D (mm) | Type | ||
| 17.01 10 00 | 134 x 170 x 130 | PCF 17006 | ||
| 17.02 10 00 | 170 x 170 x 130 | PCF 17007 | ||
| 17.03 10 00 | 170 x 269 x 130 | PCF 17008 | ||
| 17.04 10 00 | 269 x 269 x 130 | PCF 17009 | ||
| 17.05 10 00 | 269 x 540 x 130 | PCF 17010 | ||
| 17.06 10 00 | 269 x 441 x 130 | PCF 17011 |
