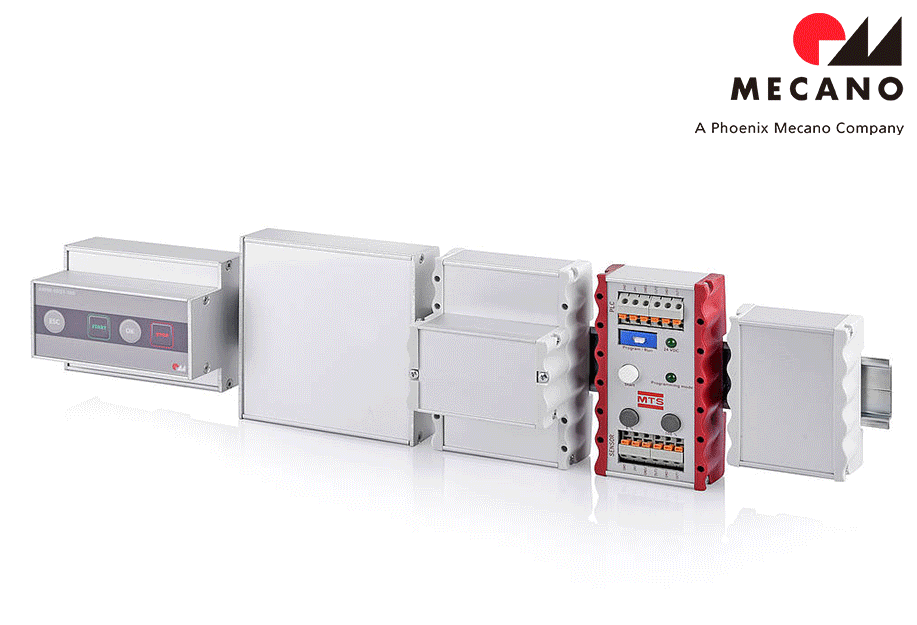

Modular DIN rail enclosure – aluminium profile technology
- 2 basic sizes
- 7 standard lengths
- Special lengths on request
- Variable positioning of the modules
- Can be used as single-PCB enclosure
- Design-matching wall fitting
- Earthing set as accessory
| Characteristics | ||||
| Colour | Profile, natural-coloured anodised aluminium; profile caps light grey, similar to RAL 7035; special colours on request | |||
| Protection Class | Depending on enclosure design, up to IP 40 / DIN EN 60529 | |||
| Enclosure Material |
Extruded profiles: Al Mg Si 0.5, anodised; profile caps: polyamide 6.6 FR; for details see Technical Information |
|||
Modular DIN rail enclosure – aluminium profiletechnology
|
The basic profiles are available in widths75 mm and 105 mm (suitable for theinstallation of Euro cards). |
Individual enclosure configuration bycombining basic profiles with moduleprofiles which can be fitted in differentways |
Easy mounting on a DIN rail acc. to DIN EN60715 TH 35 by means of a moulded-onholding device and a snap-lock element. |
|
One option for wall mounting is with thewall fixing available as an accessory.
|
|
End profile caps ensure a visuallystandardised appearance
|
|
Earthing set available as an option |
