Profile: light grey, similar to RAL 7035; lateral elements: black, similar to RAL 9005; special colours on request

Extruded profiles: polyamide PA-GF HT, UL 94 V0; lateral elements: polyamide PA, UL 94 V0; for details see Technical Information.

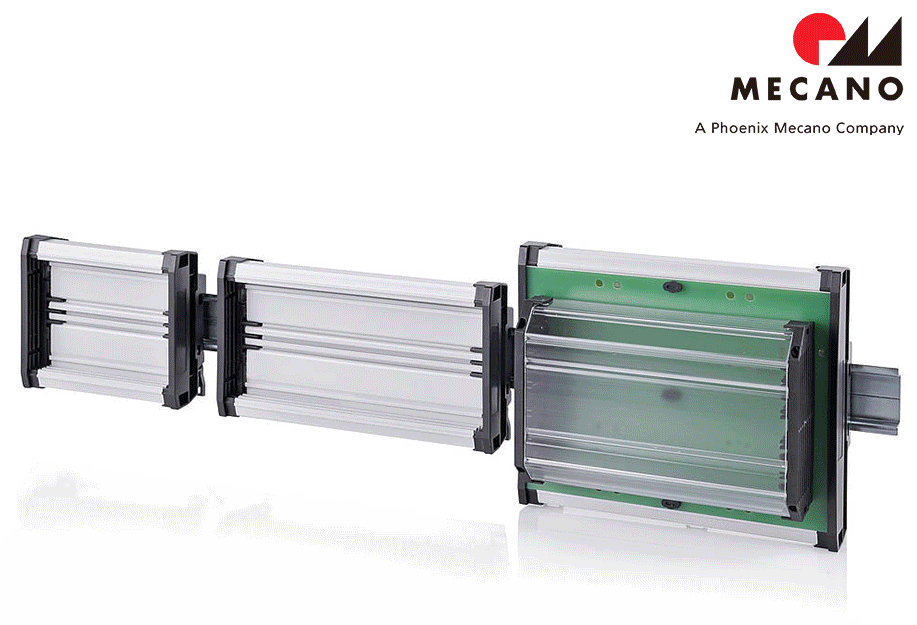

The lateral elements with integrated footcatch snap onto the enclosure profile.

The optional foot elements increasemechanical stability in the case of longerprofiles and/or high loads

The inserted PCB can be given electricalconnectivity with the DIN rail by means ofthe potential earthing contact (available asan accessory).

Guide grooves on three levels for optimalpositioning of the circuit board, oradditional front panel mounting.

Defined sections on a circuit board can beprotected by a crystal-clear hood. Freeaccess to other sectors is still given

Hoods as part-covers for the circuit boardin special lengths are available on request.

For the PCB layout, note that certain cut-outs for plug-in slots and the enclosureprofile must remain unfitted at the edges
