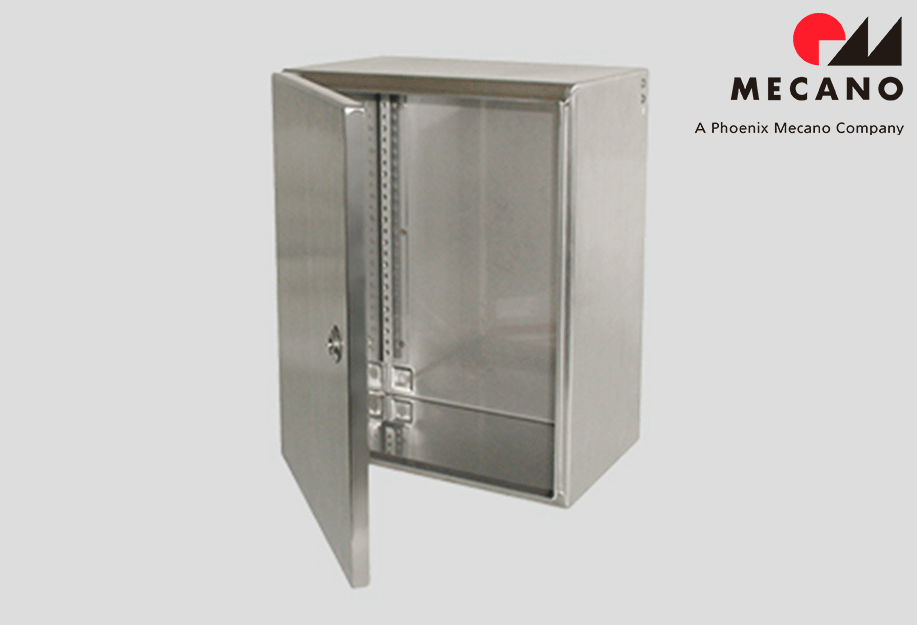

Ex stainless steel enclosure with hinged lid
- High-quality enclosure systems for aggressive areas according ATEX and IEC-directives
- Empty enclosures for individual fittings and Ex e / Ex ia terminal enclosures
- With covered hinges and double ward locks
Included in delivery
- Empty enclosure: Enclosure with silicone seal and external earth connection.
Product Information
| Technical Data | |
| Explosion protection |
II 2G Ex e IIC T6/T5/T4 Gb II 2G Ex ia IIC T6/T5/T4 Gb II 2G Ex d e ia [ia] mb IIC T6/T5/T4 Gb II 3G Ex e d mb ia [ia] nA nC [op is] IIC T6, T5, T4 Gc II 2D Ex tb IIIC T85°C/T100°C/T135°C Db IP66 |
| Material |
Stainless steel 1.25 mm or 1.5 mm; 14301/304 1.4404/316L on request |
| Certificates |
PTB 00 ATEX 1101U IECEx PTB 07.0059U EAC № TC RU C-DE.AA87.B.00971 |
| Ingress protection | IP 66 to EN 60529 |
| Surface | grinded, grain 240 |
| Impact resistance | 7 Joule to EN 60079-0 |
| Temperature range |
Ex B: -55°C to +135°C |
| Other versions on request | EMC |
| Product Range | ||||
| Order-No. | Dimensions H x W x D（mm） | Type | ||
| 34.00 22 09 | 250 x 200 x 97 | IGSExB 34010 | ||
| 34.00 22 15 | 250 x 200 x 157 | IGSExB 34015 | ||
| 34.00 32 09 | 250 x 350 x 97 | IGSExB 34020 | ||
| 34.00 33 16 | 300 x 300 x 167 | IGSExB 34025 | ||
| 34.00 44 16 | 380 x 380 x 167 | IGSExB 34030 | ||
| 34.00 44 21 | 380 x 380 x 217 | IGSExB 34035 | ||
| 34.00 53 16 | 300 x 500 x 167 | IGSExB 34040 | ||
| 34.00 63 16 | 300 x 600 x 167 | IGSExB 34045 | ||
| 34.00 64 21 | 380 x 600 x 217 | IGSExB 34050 | ||
| 34.00 99 99 | Special size on request | IGSExB 34055 | ||
| 35.00 22 09 | 250 x 200 x 97 | IGSExe 35010 | ||
| 35.00 22 15 | 250 x 200 x 157 | IGSExe 35015 | ||
| 35.00 32 09 | 250 x 350 x 97 | IGSExe 35020 | ||
| 35.00 33 16 | 300 x 300 x 167 | IGSExe 35025 | ||
| 35.00 44 16 | 380 x 380 x 167 | IGSExe 35030 | ||
| 35.00 44 21 | 380 x 380 x 217 | IGSExe 35035 | ||
| 35.00 53 16 | 300 x 500 x 167 | IGSExe 35040 | ||
| 35.00 63 16 | 300 x 600 x 167 | IGSExe 35045 | ||
| 35.00 64 21 | 380 x 600 x 217 | IGSExe 35050 | ||
| 35.00 99 99 | Special size on request | IGSExe 35055 | ||
| 36.00 22 09 | 250 x 200 x 97 | IGSExi 36010 | ||
| 36.00 22 15 | 250 x 200 x 157 | IGSExi 36015 | ||
| 36.00 32 09 | 250 x 350 x 97 | IGSExi 36020 | ||
| 36.00 33 16 | 300 x 300 x 167 | IGSExi 36025 | ||
| 36.00 44 16 | 380 x 380 x 167 | IGSExi 36030 | ||
| 36.00 44 21 | 380 x 380 x 217 | IGSExi 36035 | ||
| 36.00 53 16 | 300 x 500 x 167 | IGSExi 36040 | ||
| 36.00 63 16 | 300 x 600 x 167 | IGSExi 36045 | ||
| 36.00 64 21 | 380 x 600 x 217 | IGSExi 36050 | ||
| 36.00 99 99 | Special size on request | IGSExi 36055 |
