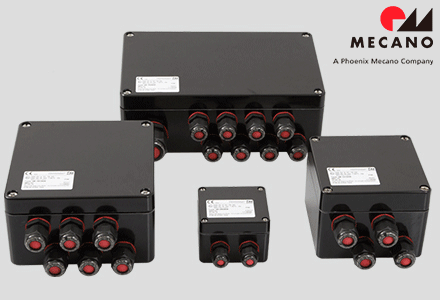

PExcom - pre-assembled Ex polyester connecting enclosures
- Ready to install
- Available within 48 h
- Pre-assembled: Fitting with terminals and cable glands
Included in delivery
- Ex polyester enclosure with DIN rail and terminals (Phoenix Contact MUT 4 or UT 4) and plastic glands with ATEX and IECEx approval.
Product Information
| Technical Data | |
| Certificates |
PTB 00 ATEX 1002 IECEx PTB 08.0004 |
| Explosion protection |
II 2G Ex e IIC T6 Gb; II 2D Ex tb IIIC T70°C |
| Material | glass fibre reinforced thermoset polyester with graphite added |
| Colour | RAL 9011, graphite black |
| Ingress protection | IP 66 to EN 60529 |
| Impact resistance | 7 Joule to EN 60079-0 |
| Flammability | self-extinguishing, UL 94 V-0 |
| Surface resistance | <109 Ohm to IEC 60093 |
| Toxicity | halogen free |
| Temperature range | -55°C to +40°C (acc. T6 = 80°C max. on surface temperature) |
| Product Range | ||||
| Order-No. | Dimensions H x W x D (mm) | Type | ||
| 06.08 08 06 4 |
75 x 80 x 56 |
PExcom 1 | ||
| 06.12 12 09 4 | 120 x 122 x 91 | PExcom 2 | ||
| 06.12 12 09 4 | 160 x 160 x 91 | PExcom 3 | ||
| 06.16 26 09 4 | 160 x 260 x 91 | PExcom 4 |
