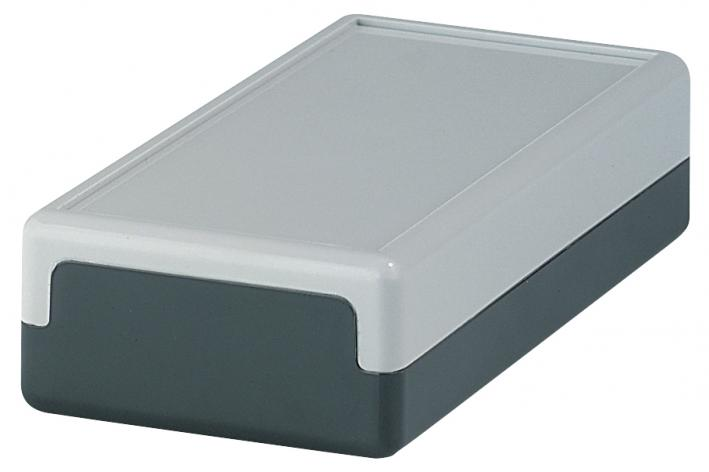

Element / Universal - 美卡诺元器件（上海）有限公司

12 sizes of the Element; 3 sizes of the Universal
With air vents and/or recessed membrane keypad area, depending on design

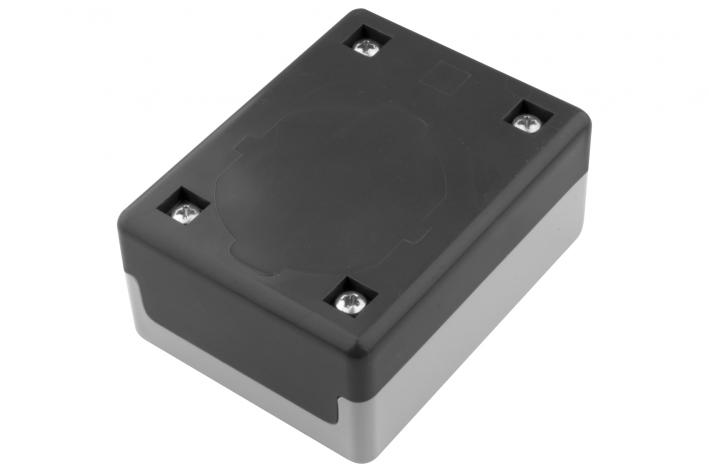

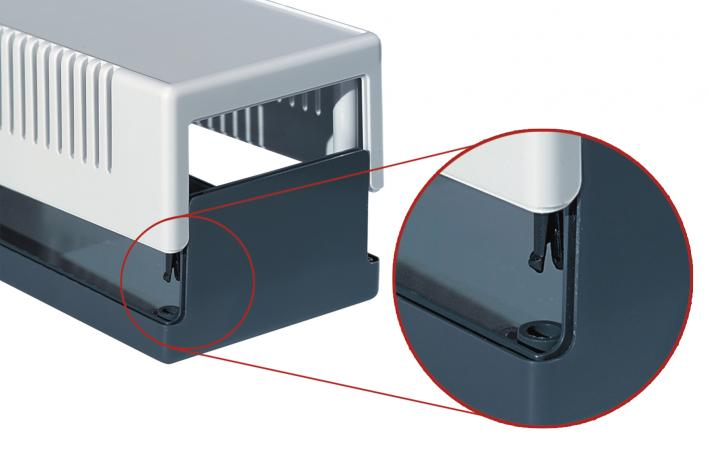

S version with snap lock
A version with aluminium front panel in lid
Depending on the model, lid screwing systems from above and quick-release fasteners are available

Product Information

Characteristics
Colour	Lid: light grey, similar to RAL 7035; base graphite grey, similar to RAL 7024; special colours on request
Protection Class	Plain: IP 40/DIN EN 60529; with air vents: IP 30/DIN EN 60529
Enclosure Material	PS (polystyrene); for details see Technical Information

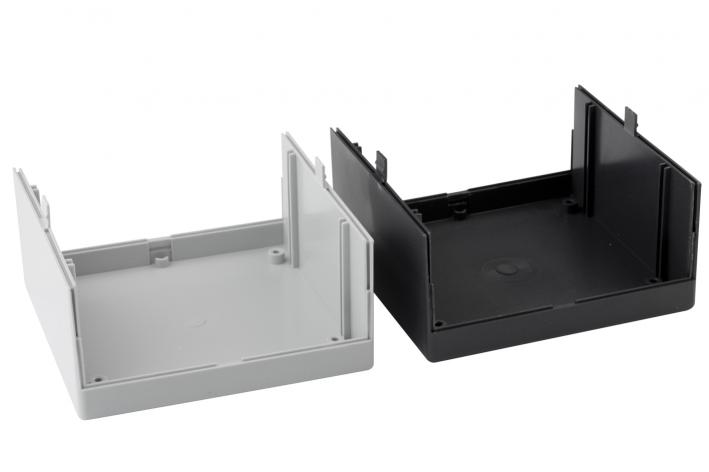

The special geometry of the enclosure half-shells offerseasy mounting in the interior

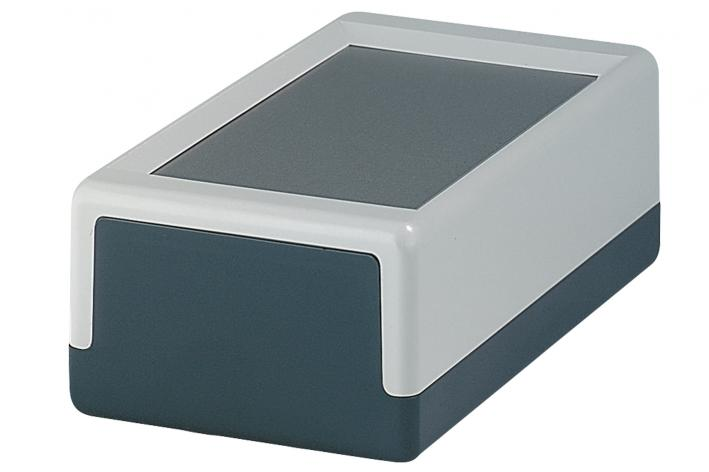

F version: With a recessed area of 1 mm inthe lid for the mounting of membranekeypads.

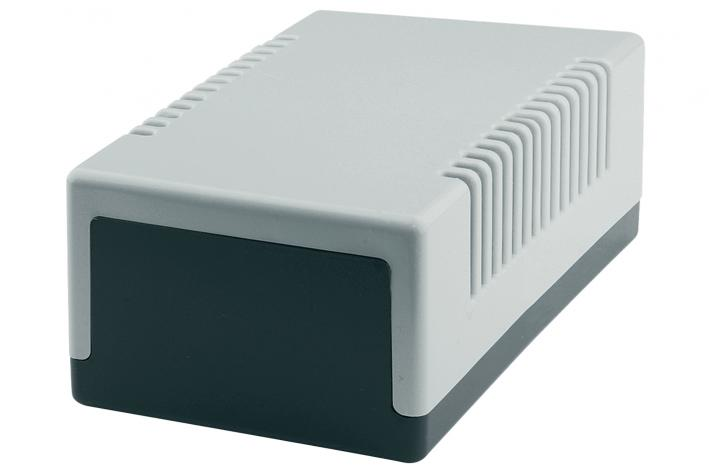

VL version: With vertical, injection-moulded air vents.

A version E 430 A on request: With analuminium front panel in the cover area ofthe lid.

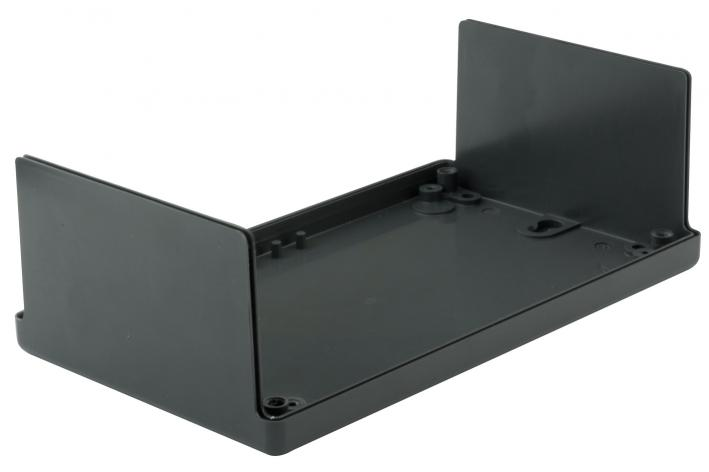

Element: Front panel moulded onto thebase – the lid can be removed withoutdismantling the electronics.

Screwing is from below, so no screws arevisible on the surface.

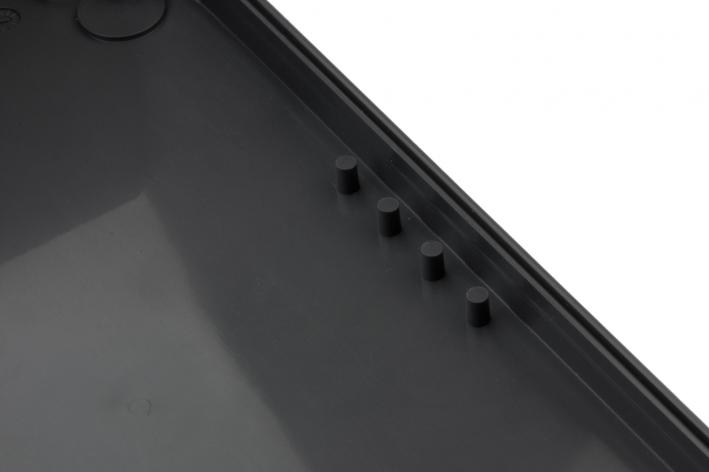

With large sizes supporting domes areprovided in the base to give mechanicalstability to the PCB.

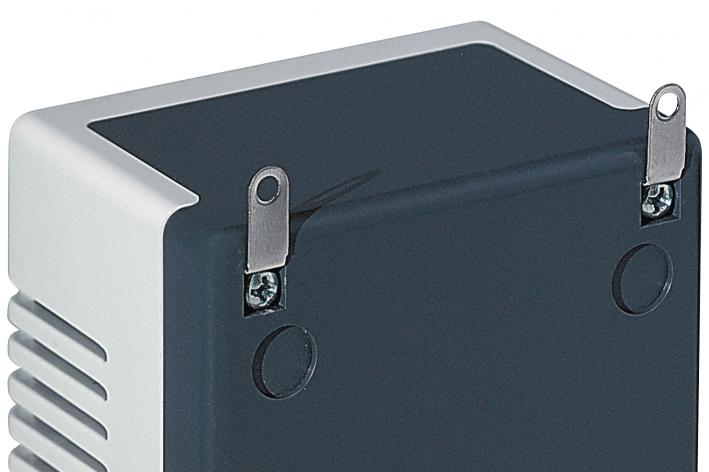

An optional quick-release fastener –suitable for retrofitting – allows openingand closing of the enclosure withoutscrewing (only with E 435... - E 470...).
