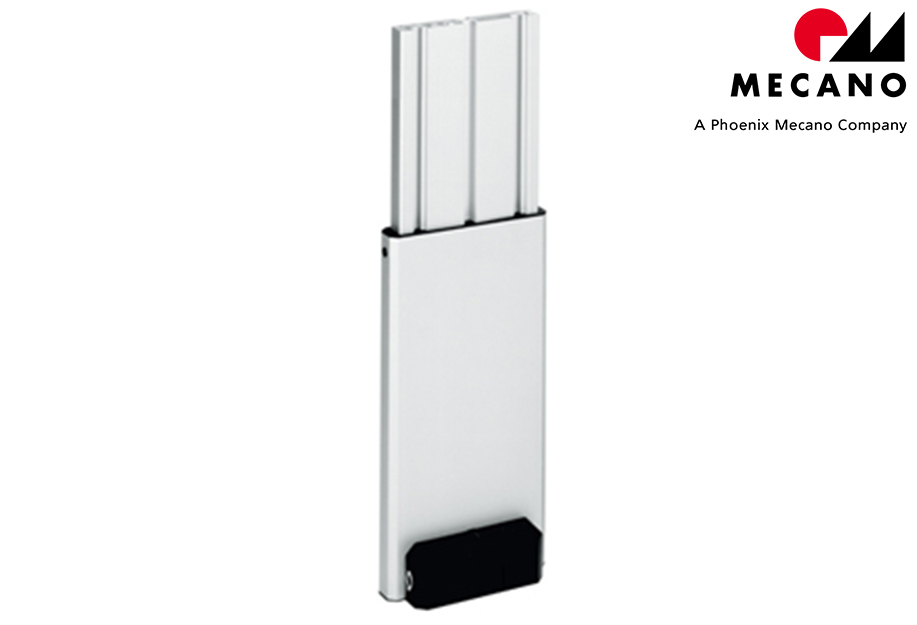

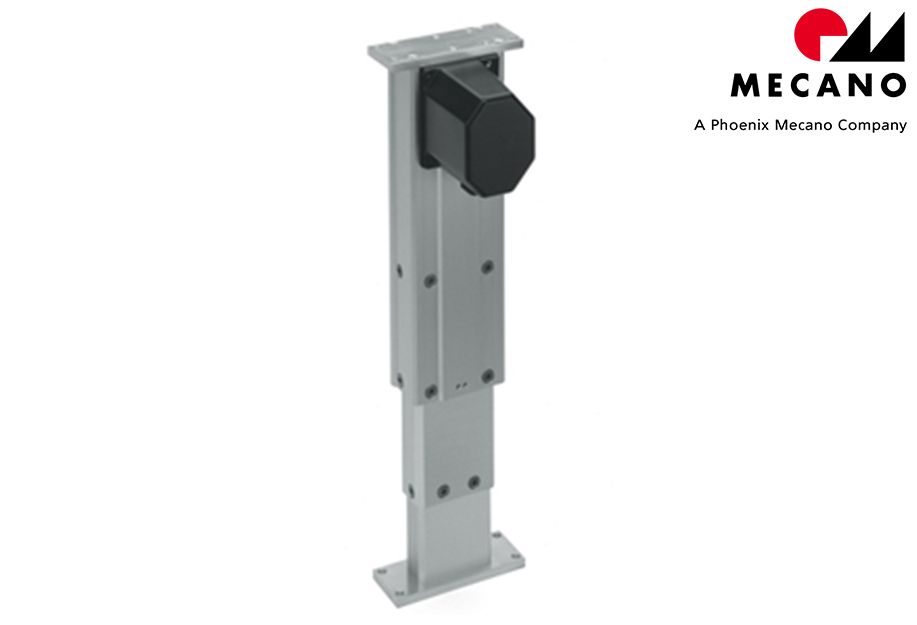

Multilift (two-stage lifting columns for up to 500 mm travel)

The Multilift is for continuous height adjustment of tables, equipment, assembly workstations and similar applications. The lifting column can be operated alone or as a pair in parallel. To establish a configuration with absolute synchronous run of several drives (maximal 4) a special drive control is available as synchronous version.

Max travel	498 mm	Integrated limit switch (adjustable)
Max compressive force	3000 N	Synchronisation Via Control
Max tensile force	1000 N	Optional manual version
Max travel speed	8 / 16 mm/s
Protection rating	IP 20

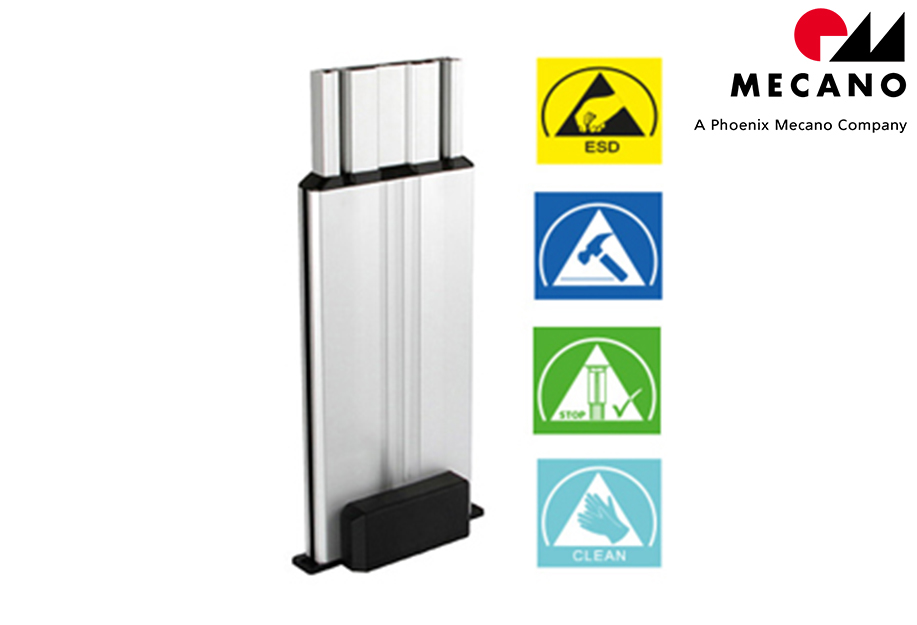

Multilift II (two-stage lifting columns for up to 500 mm travel)

Customer feedback formed the basis for a number of improvements in the design of the Multilift II. One new feature is an assembly slot on both sides of the external profile of the electric lifting column, which is compatible with the RK Rose+Krieger aluminium profile system and can take corresponding slot stones. They allow additional attachments like reinforcements, screening and so on to be mounted without any problems.

Max travel	497 mm	Synchronous package
Max compressive force	3000 N	Plug & Work (factory-initialised)
Max tensile force	3000 N	Lateral fixing slot in external profile
Max travel speed	8 / 16 mm/s
Protection rating	IP 30
Special versions	clean - to use in the clean room	impact - integrated damping absorbs high impact forces
	ESD - for ESD assembly workstations	safety - specially for overhead applications

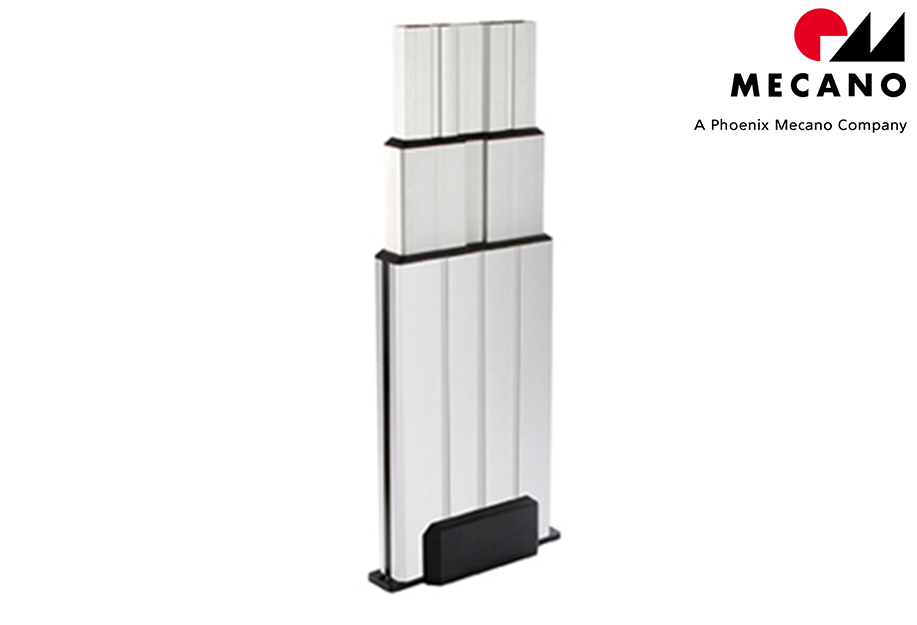

Multilift II telescope (multi-stage lifting columns for over 500 mm travel)

The telescopic version of the Multilift – the Multilift II telescope – is RK Rose+Krieger's response to greater demands from customers for two-legged bench systems. The new lifting column conforms to the ergonomics standard for workbenches (DIN EN 527-1:2011) and features an optimum height/stroke length ratio: With an installation dimension of 560 mm and a stroke length of 650 mm, the Multilift II telescope also handles compressive forces of up to 3,000 N. This is unique in the market for a lifting column of its form at present.

Max travel	650 mm	Synchronous package
Max compressive force	3000 N	Plug & work (factory-initialised)
Max tensile force	2000 N	Lateral fixing slot in external profile
Max travel speed	8 / 16 mm/s
Protection rating	IP 30

RK Slimlift (two-stage lifting columns for up to 500 mm travel)

The RKSlimlift looks unflashy and filigree but it is highly loadable. The whole drive unit is placed in the column and is not visible from the outside. Fixing slots in the side walls offer the possibility to attach additional components, e.g. panels, cable channels and braces.

Max travel	500 mm	Integrated limit switch (adjustable)
Max compressive force	4000 N	Synchronisation Via Control
Max tensile force	2000 N	Optional manual version
Max travel speed	8-32 mm/s
Protection rating	IP 30

RK Powerlift (two-stage lifting columns for up to 500 mm travel)

The RK Powerlift has been developed to be used as single column. Its high stability allows amazing side forces at high travel speeds. The modern and timeless profile design does not need any coverings.

Max travel	500 mm	Integrated limit switch (adjustable)
Max compressive force	3000 N	Synchronisation Via Control
Max tensile force	3000 N	Integrated limit switch (adjustable)
Max travel speed	10-50 mm/s	Optional manual version
Protection rating	IP 30

RK Powerlift telescope (multi-stage lifting columns for over 500 mm travel)

Max travel	650 mm	Integrated limit switch (adjustable)
Max compressive force	1600 N	Synchronisation Via Control
Max tensile force	800 N	Choice of internal or external control
Max travel speed	15-30 mm/s
Protection rating	IP 30

Alpha Colonne (multi-stage lifting columns for over 500 mm travel)

The guide profiles of the Alpha Colonne are exactly square shaped. This makes the side forces identical for all sides. Compared to other systems, it has a third guide step with a large overlapping when it is extended which improves its stability.

Max travel	600 mm	Integrated limit switch
Max compressive force	3000 N	Synchronisation Via Control
Max tensile force	3000 N	Integrated Control
Max travel speed	8-18 mm/s
Protection rating	IP 30

Lambda Colonne (multi-stage lifting columns for over 500 mm travel)

The lifting column LAMBDA Colonne is a telescopic drive which is alone or as a pair (Twin) suitable for lifting and lowering in many possible applications. It can be used for lifting forces of maximal 4,500 N (single) and 9,000 N(Twin) and a total lifting height of 600 mm.

Max travel	600 mm	Integrated limit switch
Max compressive force	4500 N	Synchronisation Via Control
Max tensile force	4500 N
Max travel speed	8-20 mm/s
Protection rating	IP 54 \| IP 40
