Electric Cylinders

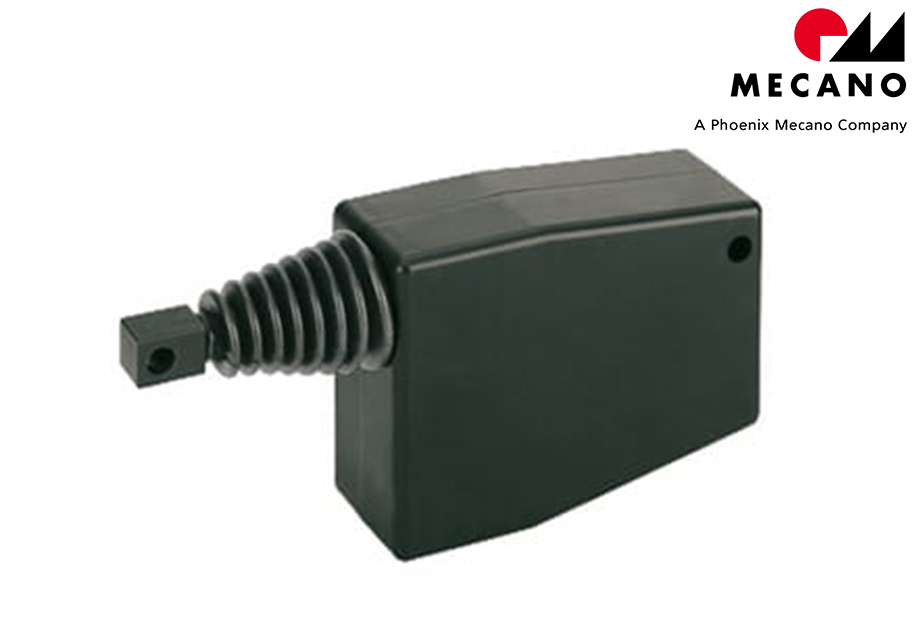

Electric Cylinder M9 (Performance Class 1)

The electric cylinders of the component M9 are low-cost linear drives for small powers and feature compactness and space-saving dimensions.

Max travel	50 mm	Integrated limit switch
Max compressive force	300 N	Signal contact implemented
Max tensile force	300 N	Potentiometer
Max travel speed	14 mm/s
Protection rating	IP 30

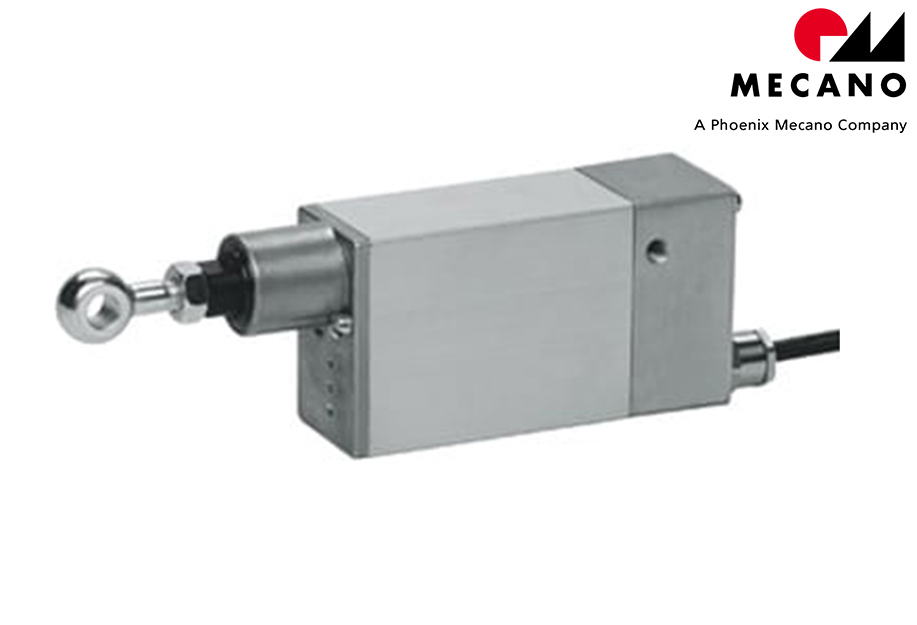

Electric Cylinders 010 (Performance class 1)

The compact electric cylinders of the component 010 are especially designed for demanding situations. They are equipped with high-quality, non-ferrous motors, withstand extreme loads and reach long lifetimes.

Max travel	40-100 mm	Integrated limit switch (adjustable)
Max compressive force	500 N	Signal contact implemented
Max tensile force	500 N	Potentiometer
Max travel speed	22 mm/s
Protection rating	IP 40\| IP 54

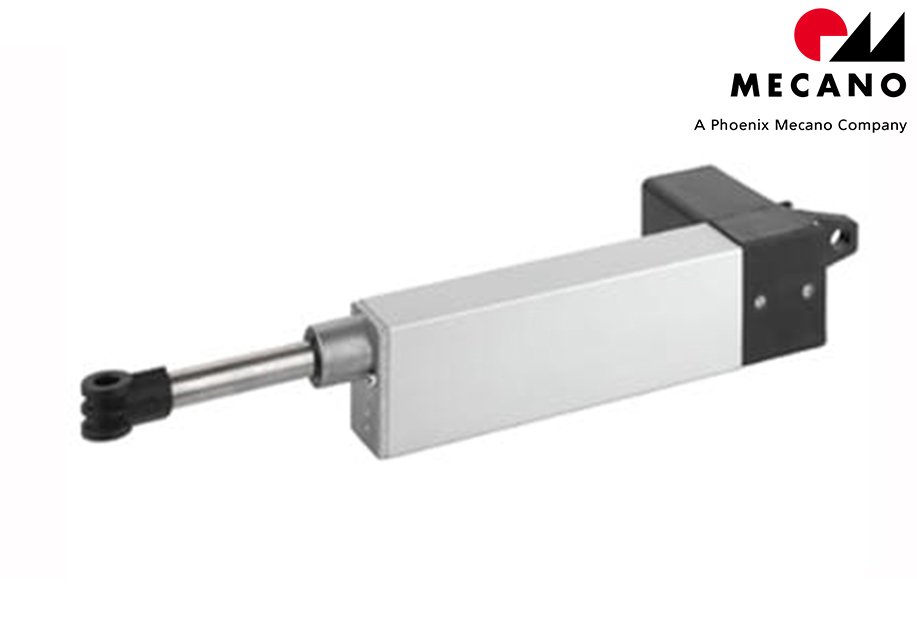

Electric Cylinder 015 (Performance class 2)

The electric cylinders of the component 015 are best suited for industrial applications. Because of its compact and robust design it can also be used at strong conditions.

Max travel	300 mm	Integrated limit switch (adjustable)
Max compressive force	1000 N	Signal contact implemented
Max tensile force	1000 N	Potentiometer
Max travel speed	100 mm/s
Protection rating	IP 54

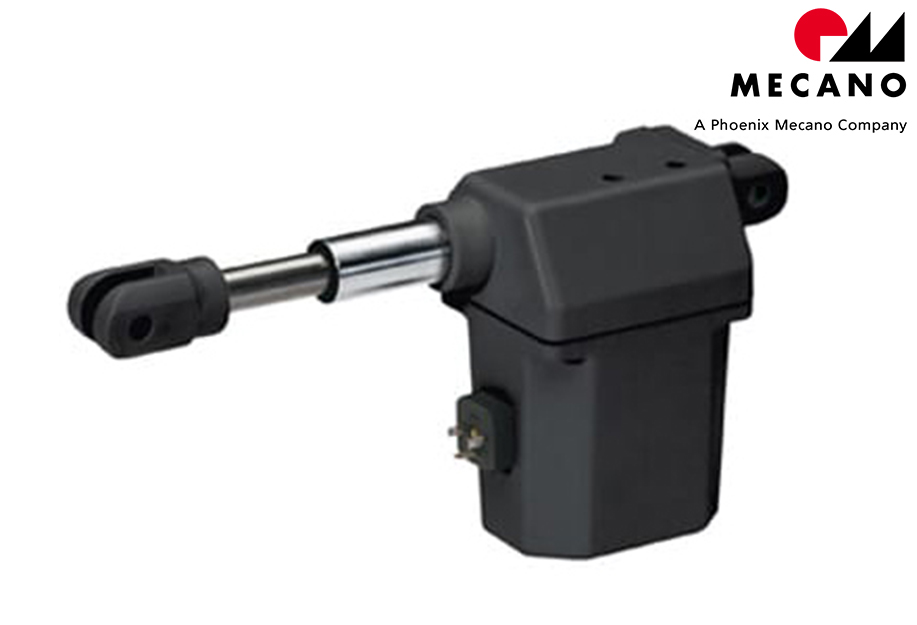

Electric Cylinders LAMBDA (Performance class 2)

The electric cylinder LAMBDA is best suited for industrial applications and for applications that require special protective systems (IP 66).

Max travel	600 mm	Integrated limit switch (adjustable)
Max compressive force	6000 N	Synchronisation Via Control
Max tensile force	4000 N	Signal contact implemented
Max travel speed	21 mm/s	Potentiometer
Protection rating	IP 66

Electric Cylinder LZ 60 S/P (Performance class 2)

The completely equipped electrical cylinder unit includes the motor transmission unit, along with the motor brake, two-channel Hall-IC sensor and two end-limit switches. All connection lines run directly out of the unit to make configuration and initial start-up easier, particularly for PLC operation. The fixation of the electric cylinder connections is compatible with commercial pneumatic and hydraulic cylinders.

Max travel	600 mm	Integrated limit switch (adjustable)
Max compressive force	4000 N	Synchronisation Via Control
Max tensile force	4000 N	Signal contact implemented
Max travel speed	85 mm/s	Integrated Control(Optional)
Protection rating	IP 54

Electric Cylinder LZ 70 (Heavy duty cylinder)

The LZ 70 electric cylinders impress with a duty cycle of 100% and excellent dynamics. Optionally equipped with a ball screw or ACME screw, they are thus equally suitable for simple adjustment tasks and high-precision positioning.

The PowerLine version LZ 70 PL handles high compressive/tensile forces of up to 5,000 N with a top speed of 13 mm/s. The FastLine version LZ 70 FL moves lighter loads at up to 1,000 mm/s.

Max travel	1005 mm	Freely selectable drives
Max compressive force	5000 N	Service life of up to 5 million double strokes
Max tensile force	5000 N	Integrated absolute position transducer (optional)
Max travel speed	1000 mm/s	Push rod with rotation locking
Protection rating	IP 54 \| IP 65

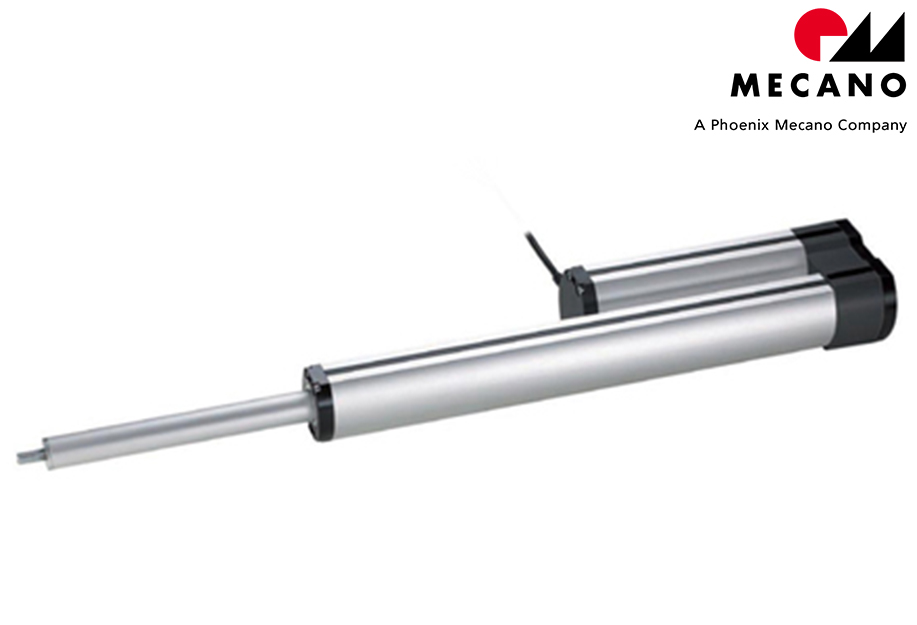

Electric Cylinder LZ 80 (Heavy duty cylinder)

The powerful LZ80 electric cylinder impresses with high tensile and compressive forces of up to 5,000 or 10,000 newtons. With the integrated DC motor in the 5,000 newton version, a speed of up to 13 millimetres per second can be achieved. Due to its compact design, this industrial all-rounder also has a protection rating of IP 54 or optionally IP 65. The comprehensive range of accessories also makes it possible to adapt ideally to your requirements.

Max travel	1005 mm	Integrated sensors for external magnetic switches
Max compressive force	10000 N	Push rod with rotation locking
Max tensile force	10000 N
Max travel speed	13 mm/s
Protection rating	IP 54 \| IP 65

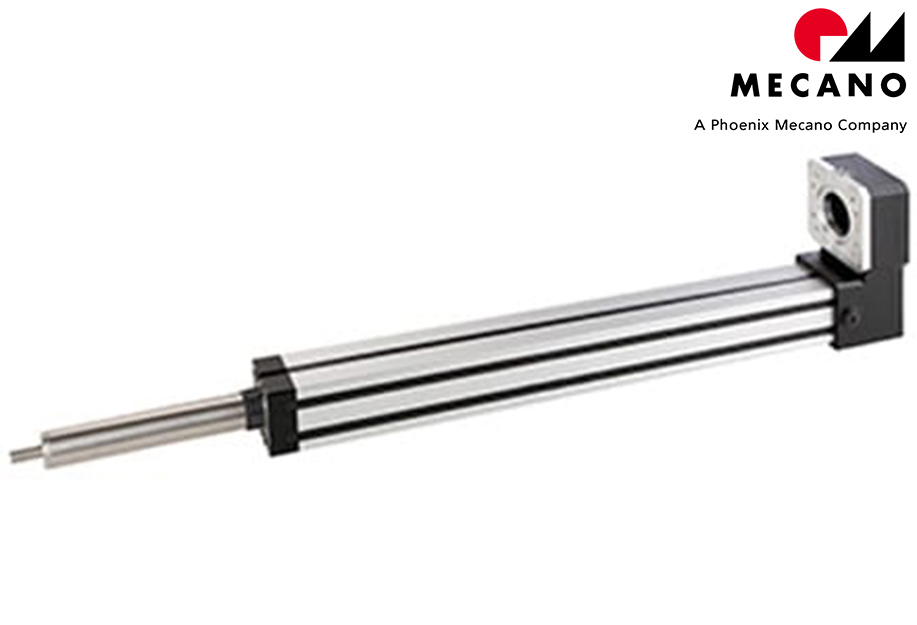

Electric Cylinder SLZ 63 (Heavy duty cylinder)

RK Rose+Krieger has expanded its range of electric cylinders with the introduction of an additional electromechanical heavy-duty cylinder: the SLZ 63. Thanks to its square shape, slots in the external profile and fitting dimensions according to DIN ISO 15552, the SLZ 63 can be integrated flexibly into a wide range of customer-specific applications.

Max travel	1000 mm	Freely selectable drives
Max compressive force	15000 N	Service life of up to 8 million double strokes
Max tensile force	15000 N	Unlimited options to adapt standard accessories DIN ISO 15552
Max travel speed	1,25 mm/s	Non-rotating stainless steel push rod
Protection rating	IP 54 \| IP 65

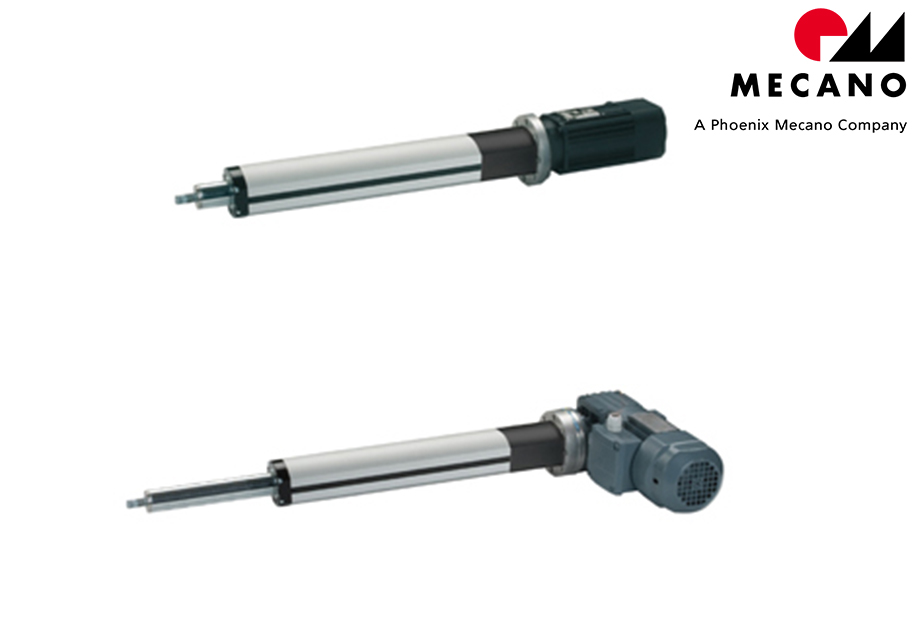

Electric Cylinders SLZ 90 (Heavy duty cylinder)

The heavy duty cylinder can travel maximal 25,000 Newton. The activation time of 100% causes the SLZ to be an interesting and reliable continuous runner for industrial applications. Its modular structure offers flexibility and enables the installation of different drive concepts.

Max travel	2000 mm	Synchronisation Via Control
Max compressive force	25000 N	motor-dependent
Max tensile force	25000 N
Max travel speed	77 mm/s
Protection rating	IP 54
