| Sizes | 40,60, 80, 120 | Mx max | 14-280 Nm |
| Max stroke length | 5465-5780 mm | My max | 35-1010 Nm |
| Fx max | 4800-4800 N | Mz max | 55-1780 Nm |
| Fy max | 1100-9400 N | Guide | Roller Guide Available Without Drive |
| Fz max | 694-5200 N | Optional | Extended Guide Carriage |
-
- Product Center
- Enclosures
- Mechanical Component
- Solution
- Solution
- Quality Assurance
- Contact Us
- Contact Us
RK ROSE+KRIEGER
Product center
-

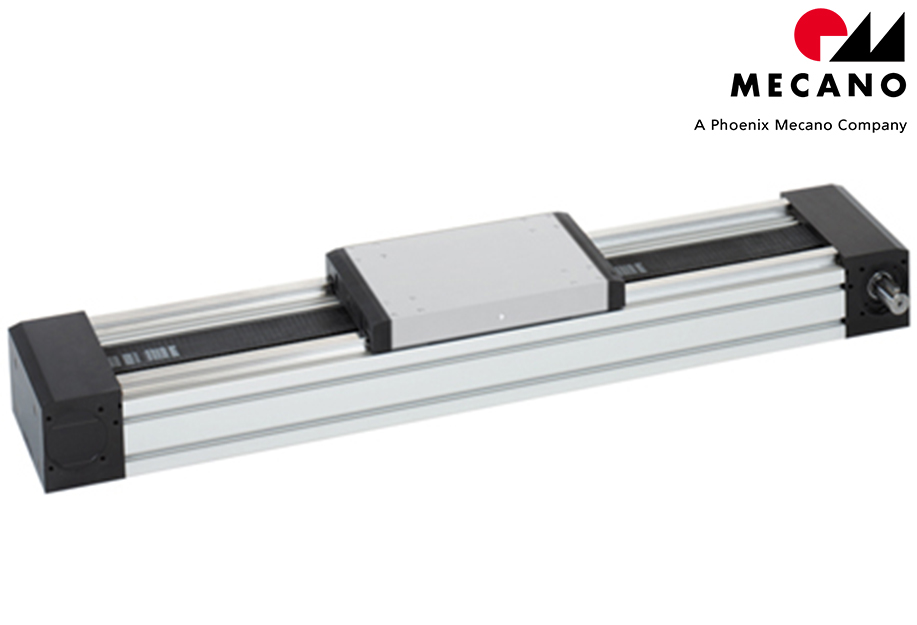

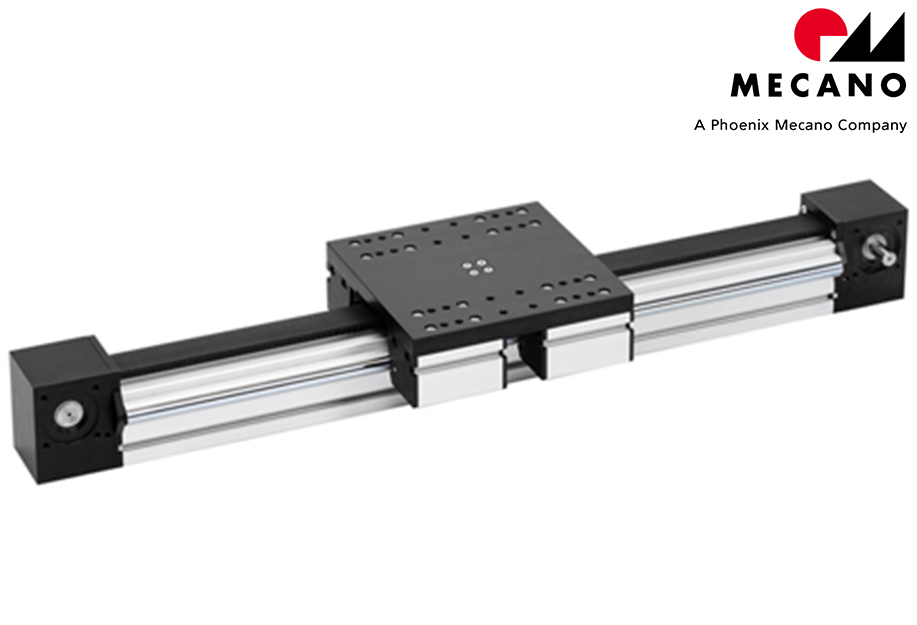

RK MonoLine (roller guide linear actuator)
he RK MonoLine is a high performance class roller guide, which represents excellent value for money.
-

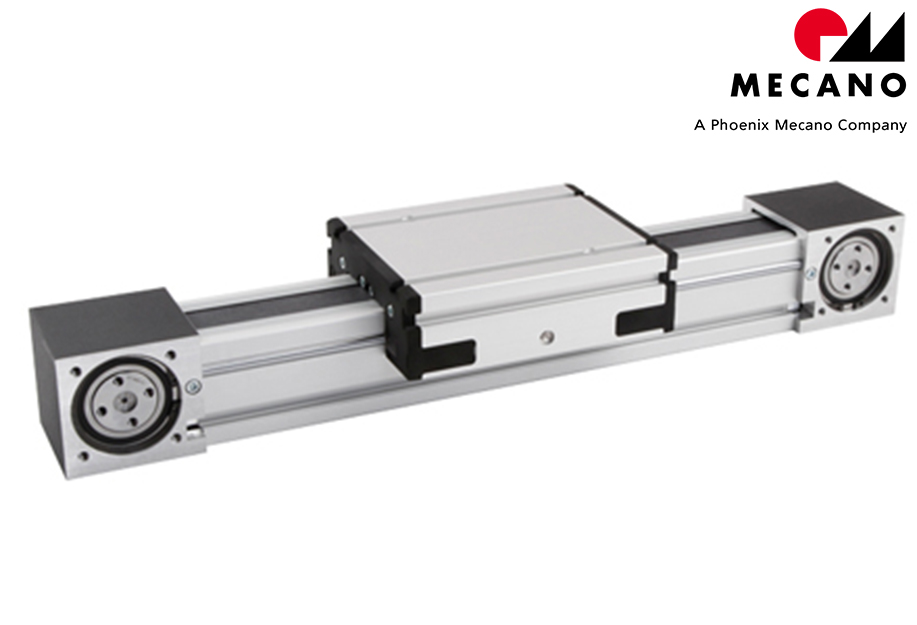

RK MonoLine MT (roller guide linear actuator)
Linear unit with Omega drive. A typical application is use as a moving axis.
Sizes 80 Mx max 95 Nm Max Stroke Length 5614 mm My max 564 Nm Fx max 1500 N Mz max 982 Nm Fy max 4367 N Optional centring holes in the guide carriage and end elements Fz max 2509 N extended guide carriage vertical installation with locking device optional -

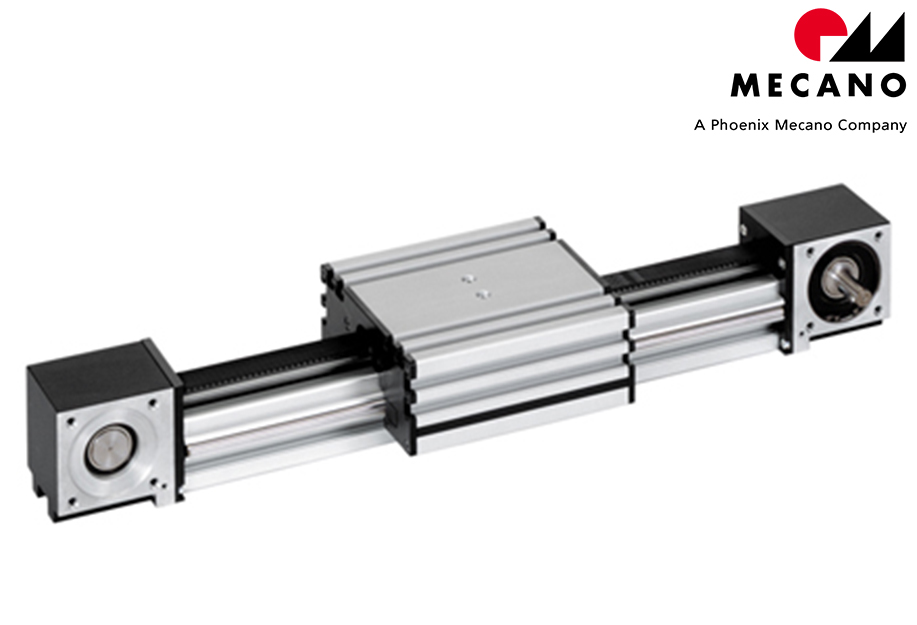

PLZ (roller guide linear actuator)
Roller guide with wide timing-belt.
Note: The linear unit PLZ is a discontinued model (phased-out model).We recommend the successor product RK MonoLine series.
Sizes 30, 40, 50, 60, 80 Mx Sizes 14-124 Nm Max Stroke Length 4590-5788 mm My Sizes 20-168 Nm Fx Sizes 140-2810 N Mz Sizes 22-169 Nm Fy Sizes 790-2550 N Guide Roller Guide Available Without Drive Fz Sizes 790-2550 N Optional Two Opposite Moving Carriages -

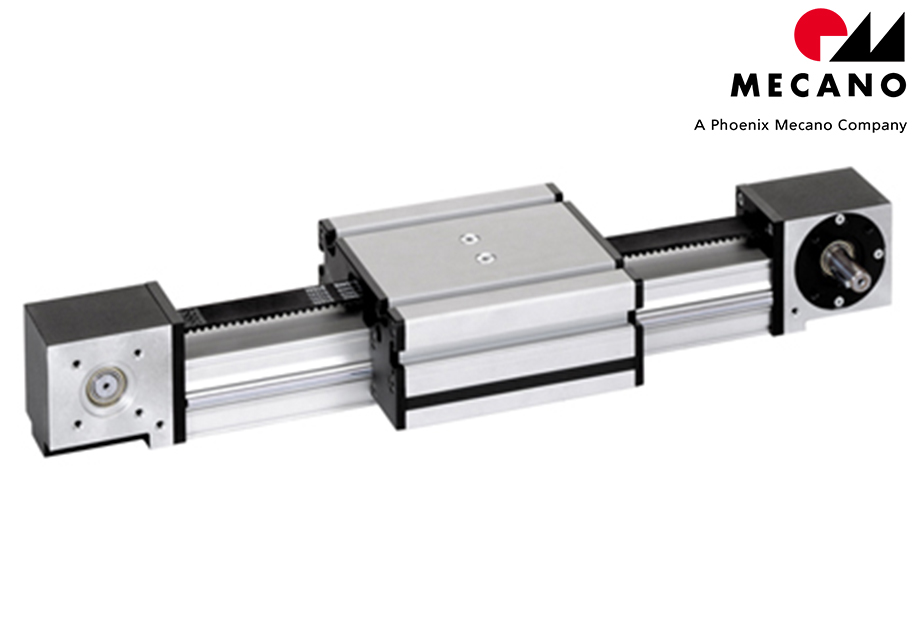

SQZ (roller guide linear actuator)
Timing-belt unit with optimum connecting options via slots in the guide profile/carriage.
Note: The linear unit SQZ is a discontinued model (phased-out model).We recommend the successor product RK MonoLine series.
Sizes 30, 40, 60, 80 Mx max 14-124 Nm Max Stroke Length 5788-5898 mm My max 20-168 Nm Fx max 160-2810 N Mz max 22-169 Nm Fy max 790-2500 N Guide Roller Guide Available Without Drive Fz max 790-2550 N -

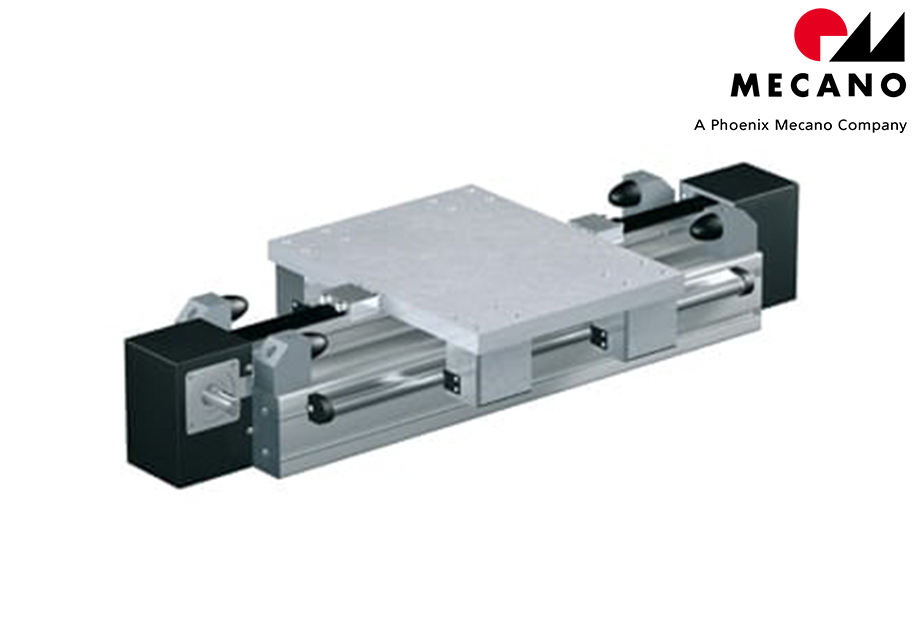

LMZ (roller guide linear actuator)
Robust linear actuator that enables high moments and forces.
Note: The linear unit LMZ is a discontinued model (phased-out model).
We recommend the successor product RK MonoLine series.
Sizes 100 Mx max 441 Nm Max Stroke Length 5700 mm My max 609 Nm Fx max 3400 N Mz max 609 Nm Fy max 7000 N Guide Roller Guide Available Without Drive Fz max 7000 N -
MultiLine (ball rail linear actuator)
Compact ball rail linear actuator for high loads.
Sizes 200 Mx max 920 Nm Max Stroke Length 5620 mm My max 1600 Nm Fx max 4700 N Mz max 1500 Nm Fy max 10000 N Guide Roller Guide Available Without Drive Fz max 10000 N locking system RK Safelock -

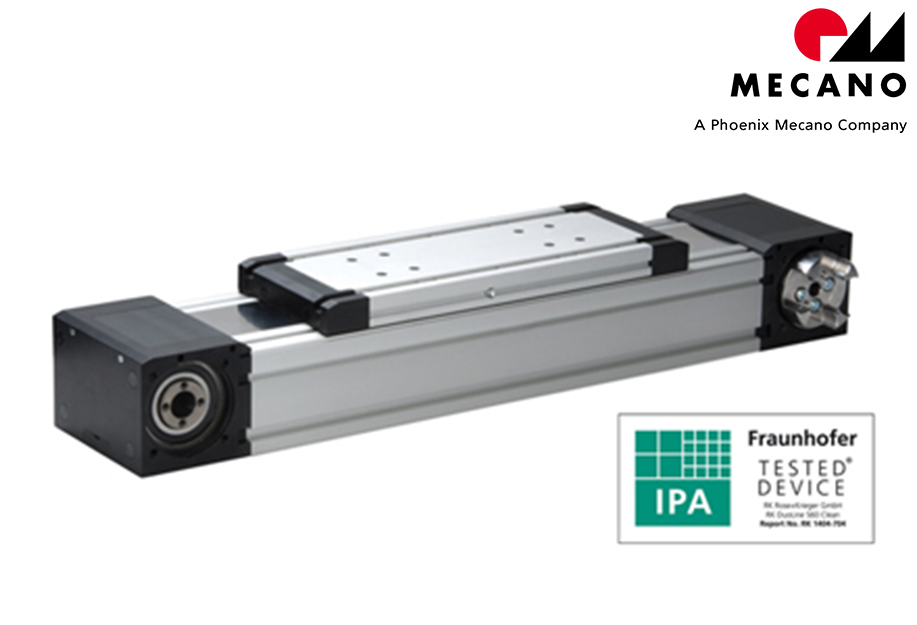

RK DuoLine Z (ball rail linear actuator)
All-round talent with encapsulated guide system.
Sizes 60, 80, 120, 160 Mx max 48-500 Nm Max Stroke Length 5665-9010mm My max 160-1200 Nm Fx max 1000-6000 N Mz max 140-1150 Nm Fy max 700-5100 N Guide Roller Guide Available Without Drive Fz max 2500-8900 N locking system RK Safelock -
D-Line (heavy duty linear actuator)
Heavy duty linear unit.
Sizes 160, 240, 320 Mx max 3800 Nm 最大行程长度 9194 mm My max 6880 Nm Fx max 4700 N Mz max 6880 Nm Fy max 10000 N Fz max 10000 N Guide Roller Guide Available Without Drive -

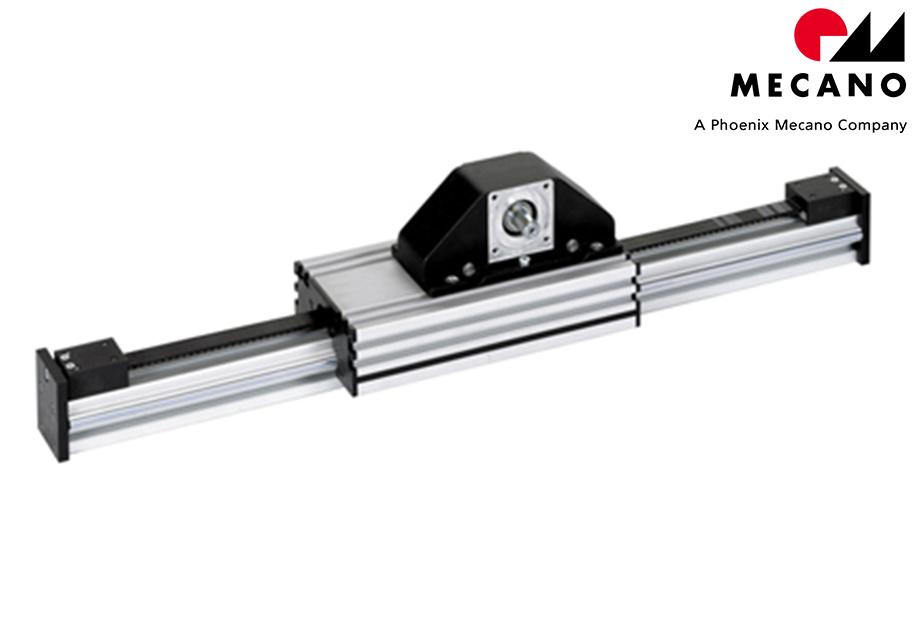

SQ-MT (roller guide linear actuator)
Timing-belt unit for large strokes/travel.
Sizes 30, 40, 50, 60, 80 Mx max 48-380 Nm Max Stroke Length 3722-17476 mm My max 70-430 Nm Fx max 480-3200 N Mz max 60-370 Nm Fy max 1000-5000N Fz max 1200-6000N
