Sizes | 30 | Mx max | 2,5 Nm |
Max stroke length | 920 mm | My max | 5,5 Nm |
Fx max | 300 N | Mz max | 5,5 Nm |
Fy max | 550 N | Spindle | right or lefthand thread |
Fz max | 1210 N | right and lefthand thread |

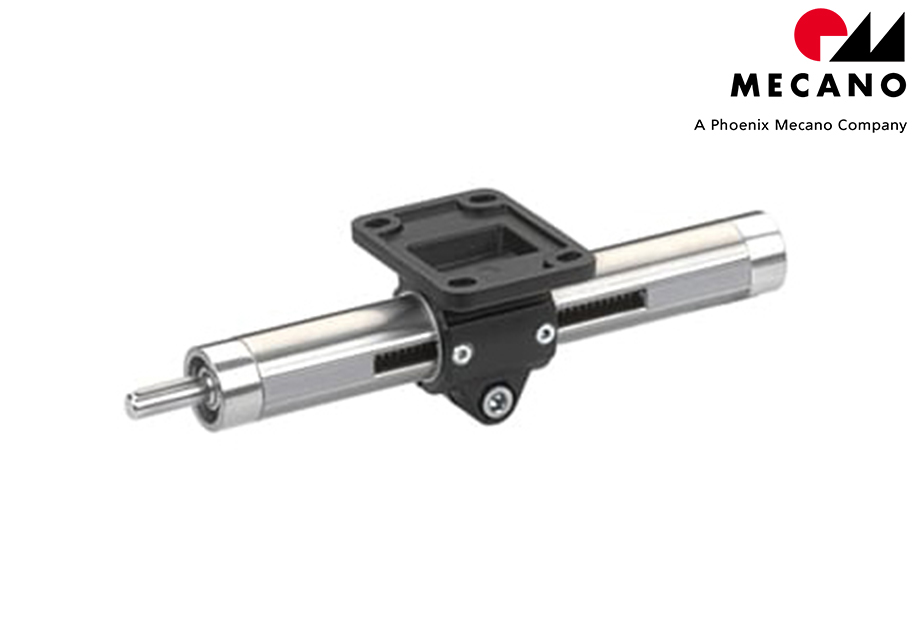

The 'light' linear unit for simple manual adjustments.
Sizes | 30 | Mx max | 2,5 Nm |
Max stroke length | 920 mm | My max | 5,5 Nm |
Fx max | 300 N | Mz max | 5,5 Nm |
Fy max | 550 N | Spindle | right or lefthand thread |
Fz max | 1210 N | right and lefthand thread |
Versatile all-rounders with an unbeatable price-performance ratio.
Sizes | 18, 30, 40, 50, 60, 80 | Mx max. | 1,5-70 Nm |
Max stroke length | 890-2740 mm | My max | 4-170 Nm |
Fx max | 400-4500 N | Mz max | 4-170 Nm |
Fy max | 90-5500 N | Spindle | right or lefthand thread |
Fz max | 60-5650 N | right and lefthand thread | |
split spindle |
The E-II stainless steel is 100% corrosion-resistant and, compared to standard units, it has an upgraded temperature range of -30 to +80°C – a further increase is even available on request.
Sizes | 30, 40 | Mx max | 6-14 Nm |
Max stroke length | 1283-2769 mm | My max | 15-40 Nm |
Fx max | 800-1000 N | Mz max | 15-40 Nm |
Fy max | 500-1200 N | Spindle | right or lefthand thread |
Fz max | 500-1900 N | right and lefthand thread |
Robust guide for the simple adjustment of medium loads.
Sizes | 30, 40 | Mx max | 65-155 Nm |
Course max | 3000 mm | My max | 65-155 Nm |
Fy max | 330-600 N | Mz max | 20-65 Nm |
Fz max | 1600-2400 N |
The robust twin tube linear unit compensates for high bending moments during manual and motor-driven adjustments.
Sizes | 18, 30, 40, 50, 60, 80 | Mx max | 20-650 Nm |
Max stroke length | 320-2610 mm | My max | 30-780 Nm |
Fx max | 400-4500 N | Mz max | 35-1100 Nm |
Fy max | 200-14000 N | Spindle | right or lefthand thread |
Fz max | 100-9100 N | right and lefthand thread | |
split spindle |

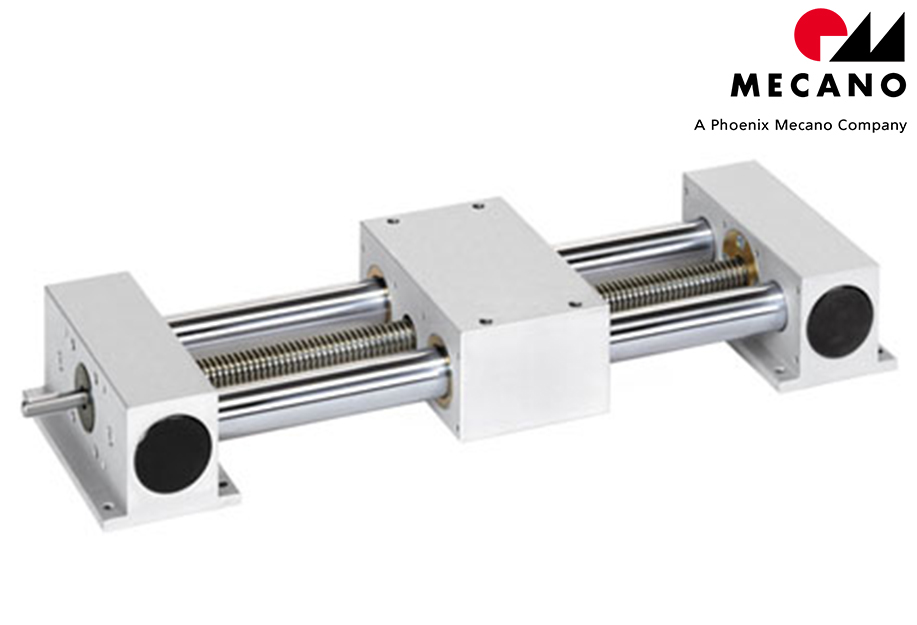

The latest generation of EP(X)-II twin tube units – compensates for high bending moments during hand and motor-driven adjustments.
Sizes | 30, 40 | Mx max | 60-160 Nm |
Max stroke length | 320-2820 mm | My max | 60-190 Nm Nm |
Fx max | 800-1000 N | Mz max | 75-240 Nm |
Fy max | 1000-6000 N | Spindle | right or lefthand thread |
Fz max | 550-2200 N | right and lefthand thread | |
split spindle | |||
Protect: with bellows and protection class IP 40 | |||
spindle clamping (option) |

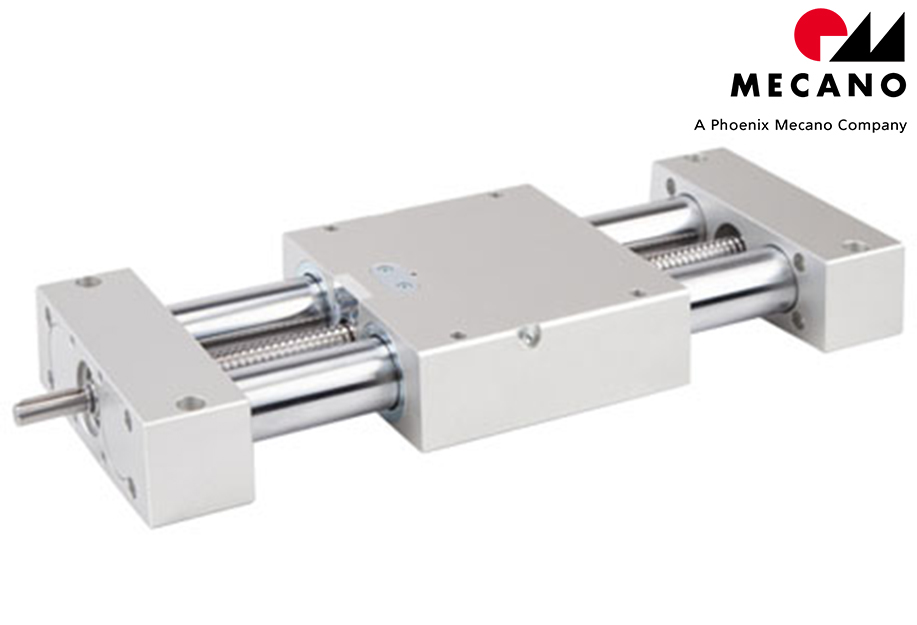

EPX-II KG linear unit with precise ball screw drive and guide shafts.
Sizes | 30, 40 | Mx max | 70-160 Nm |
Max stroke length | 1270-2250 mm | My max | 85-250 Nm |
Fx max | 1000-1200 N | Mz max | 99-280 Nm |
Fy max | 1100-2400 N | Spindle | right or lefthand thread |
Fz max | 1100-2400 N | ||
Protect: with bellows and protection class IP 40 | |||
spindle clamping (option) |
Elegant anodised aluminium design ensures precision running even at high load ratings.
Note: The linear unit COPAS is a discontinued model (phased-out model).
We recommend the successor product EP(X-II or EPX-II KG series.
Sizes | 20, 30, 40 | Mx max | 30-234 Nm |
Max stroke length | 1300-2300 mm | My max | 22-218 Nm |
Fx max | 800-1600 N | Mz max | 32-294 Nm |
Fy max | 700-3500 N | Spindle | right or lefthand thread |
Fz max | 1000-5200 N | right and lefthand thread | |
split spindle | |||
without drive (guide) |
The compact range for positioning small loads.
Sizes | 20, 40x20 | Mx max | 3-4 Nm |
Max stroke length | 855 mm | My max | 10-14 Nm |
Fx max | 125 N | Mz max | 10-14 Nm |
Fy max | 160-200 N | Spindle | right or lefthand thread |
Fz max | 180-220 N | right and lefthand thread | |
split spindle | |||
without drive (guide) |

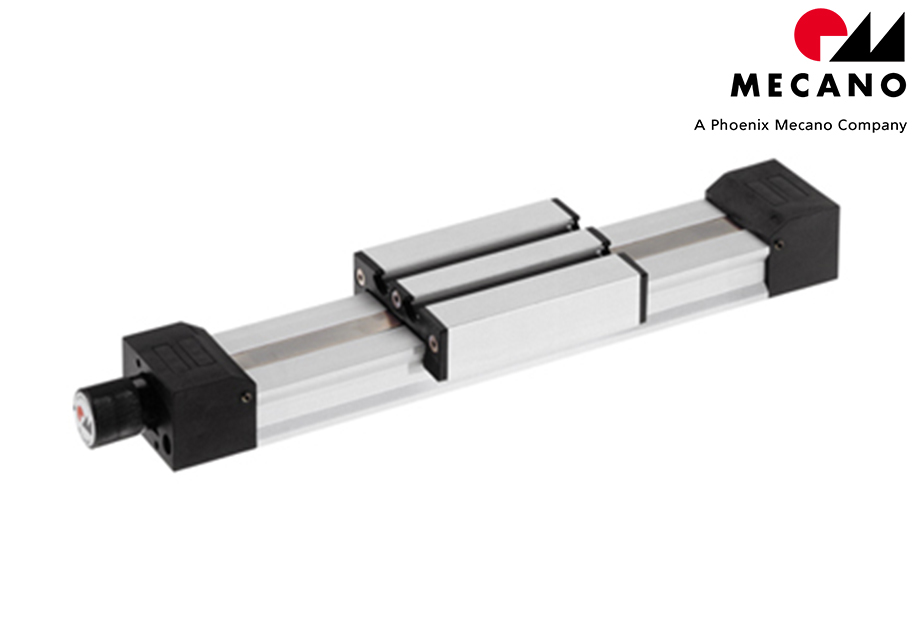

Slimline short-stroke linear actuator for manual adjustment with excellent price-performance ratio.
Sizes | 30, 50, 80, 120 | Mx max | 3-32 Nm |
Max stroke length | 130-400 mm | My max | 3-59Nm |
Fx max | 50-215 N | Mz max | 3-59 Nm |
Fy max | 160-1150 N | Spindle | right or lefthand thread |
Fz max | 160-1150 N | right or lefthand thread | |
without drive (guide) |
Low-cost guide for medium to heavy loads.
Sizes | 40, 60, 80, 120, 160 | Mx max | 50-134 Nm |
Max stroke length | 5750 mm | My max | 70-121 Nm |
Fx max | – | Mz max | 140-243-59 Nm |
Fy max | 1500-2500 N | Spindle | without drive (guide) |
Fz max | 1000-1500 N |
Compact and versatile linear actuator for manual and motor-driven adjustment of medium loads.
Sizes | 30,40, 50, 60, 80 | Mx max | 6-80 Nm |
Max stroke length | 1375-4157 mm | My max | 11-140 Nm |
Fx max | 800-2500 | Mz max | 8-85 Nm |
Fy max | 600-6000 N | Spindle | right or lefthand thread |
Fz max | 600-6000 N | right and lefthand thread | |
split spindle | |||
without drive (guide) |
Motor-driven or manual adjustment of medium to heavy loads – no problem for the PLS.
Sizes | 30,40, 50, 60, 80 | Mx max | 14-124 Nm |
Max stroke length | 830-3000 mm | My max | 20-168 Nm |
Fx max | 340-3050 N | Mz max | 22-169 Nm |
Fy max | 790-2550 N | Spindle | right or lefthand thread |
Fz max | 790-2550 N | right and lefthand thread | |
without drive (guide) |
Optional variants available for delivery with locking system for vertical actuators and as clean room version.
Sizes | 50, 60, 80, 120, 160 | Mx max | 45-500 Nm |
Max stroke length | 2268-4440 mm | My max | 380-1200 Nm |
Fx max | 1400-8000 N | Mz max | 350-1150 Nm |
Fy max | 930-5100 N | Spindle | righthand thread |
Fz max | 1100-8900 N | right and lefthand thread | |
without drive (guide)) | |||
Optional vers | locking system RK Safelock | ||
Clean room actuators (EN ISO 14644-1) |
