RK tube connector – unbeatable variety

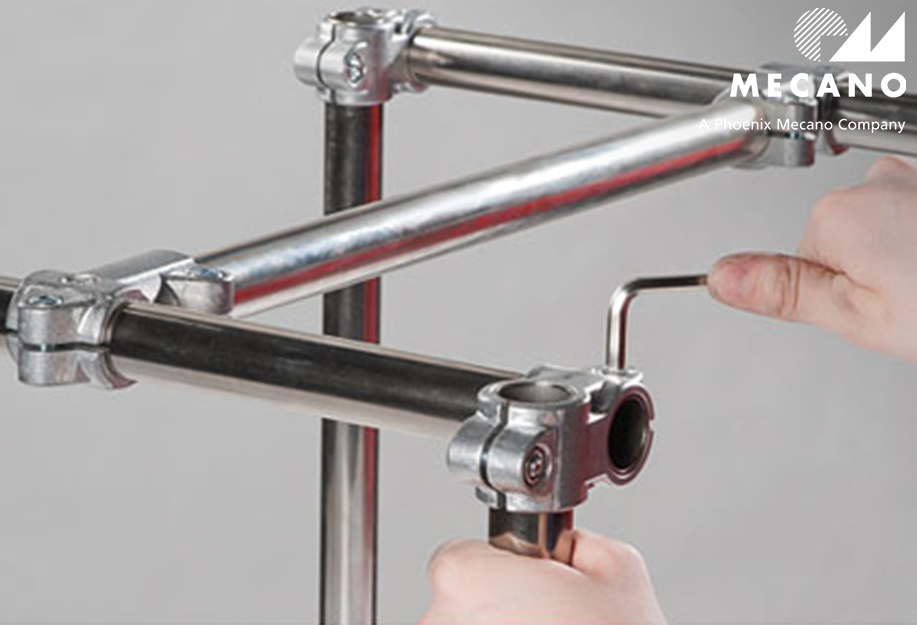

           Thanks to their simple clamping principle, the aluminium tube connectors enable the fast assembly of both round and square precision tubes. The huge diversity of this system is what makes it an attractive and cost-effective alternative to conventional welded connections. Our application expertise and the experience we have gained over several decades as a manufacturer of clamp connectors give you security for individual handling of RK tube connection systems.

         Connecting tubes with different diameters and cross sections to one another

         The cast aluminium or extruded aluminium tube connectors impress with good mechanical properties, a wide range of variants and optimum value for money. The Solid Clamps product range currently comprises clamp connectors with a diameter of 8-80 mm for round tubes and of 20-80 mm for square tubes. More than 170 basic types in over 400 different variations are available. The selection of variants, clamp diameters and range of combinations is unmatched.

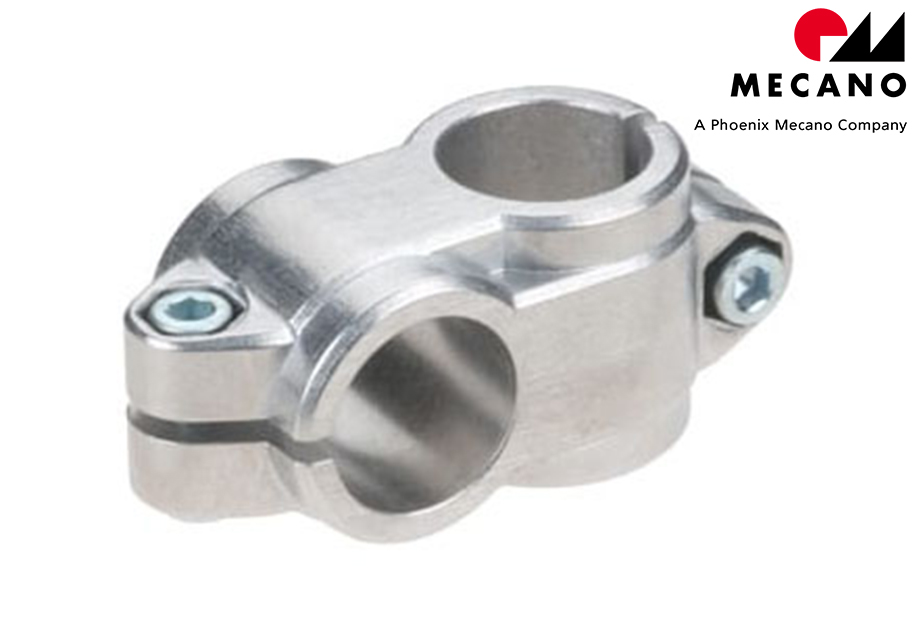

Material tube connector: cast aluminium

 ■ Wide variety of different diameters and connector designs

 ■ the clamp connectors are pushed onto the tube

 ■  Comprehensive range of accessories

Tube connector for diameters

 ■  Round tube: Ø 12, 14, 15, 16, 18, 20, 25, 30, 32, 35, 40, 42, 48, 50, 60, 80 mm

 ■  Square tube：Ø 20, 25, 30, 35, 40 mm

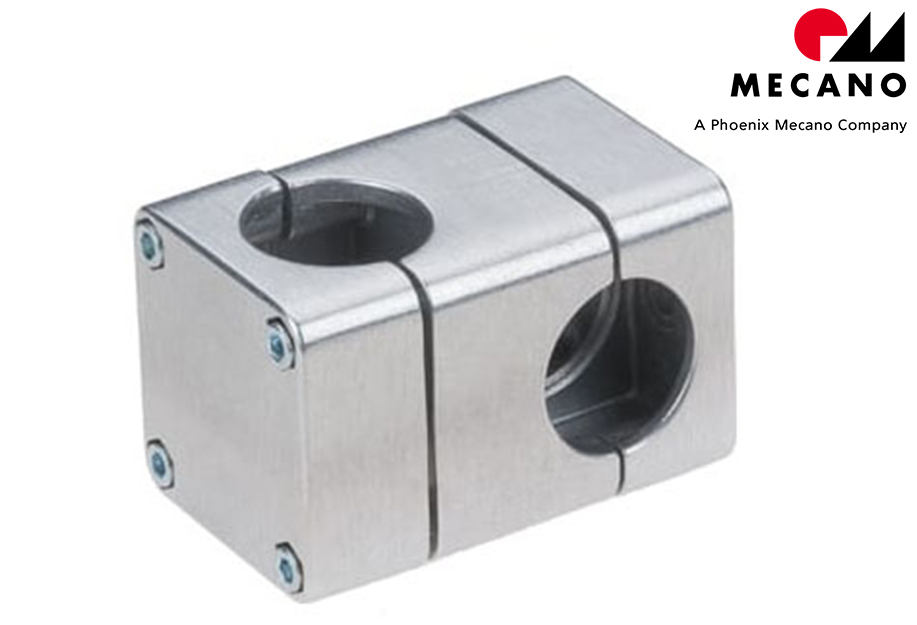

Material tube connector: extruded aluminium profile

 ■ Maximum torque

 ■ High-quality anodised finish with straight external contours

 ■ Stainless steel cylinder head screws (usually countersunk)

 ■ Single-piece and multi-piece clamp connectors

Tube connector for diameters

 ■ Round tube: Ø 20, 30, 40, 50, 60 mm

 ■ Square tub: □ 20, 30, 40, 50, 60 mm

Material tube connector: cast aluminium

 ■ Higher torque

 ■ Even external contours

 ■ Multi-piece clamp connectors (the clamp connector is fitted around the tube and then fastened)

Tube connector for diameters

 ■ Round tube: Ø 8, 10, 30, 40, 42, 45, 48, 50, 60, 80 mm

 ■ Square tube: □ 10, 30, 40, 50, 60, 80 mm

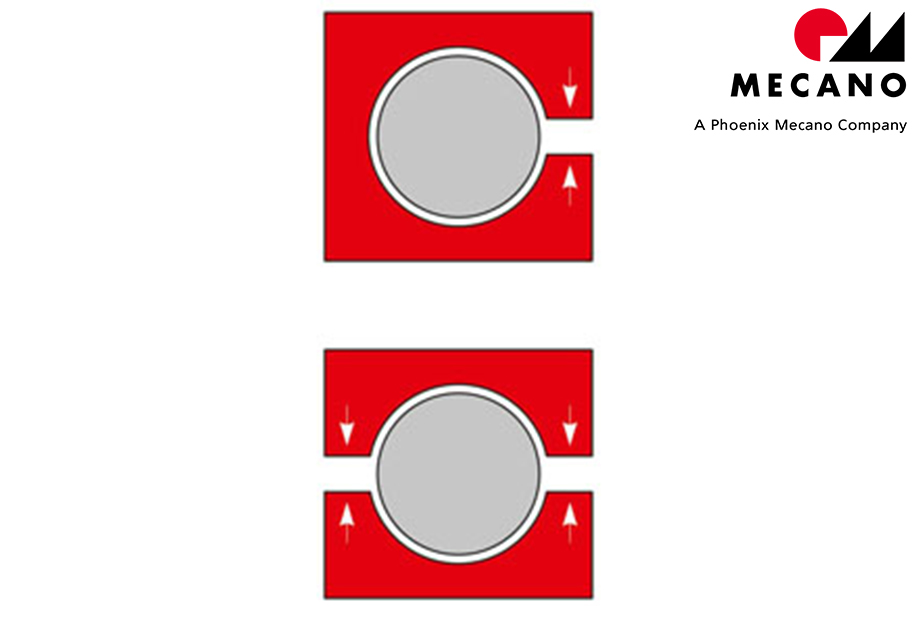

Single-piece clamp connector

 ■ or quick, cost-effective installation

 ■ for connecting round tubes

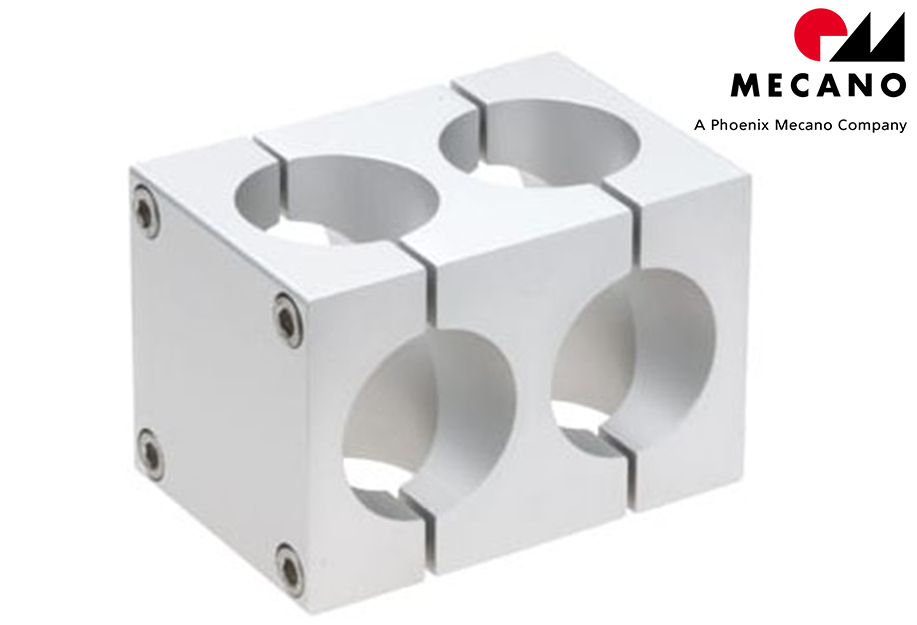

Multi-piece clamp connector

 ■ Suitable for retrofitting and extensions

 ■ For connecting round and/or square tubes
